ESD Brushes

ESD Brushes are needed in electronics manufacturing:

They help to clean the PCB’s (remove unwanted dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator.
Conductive brushes minimize static charge generation during cleaning.
Black static dissipative polypropylene handles are able to pass the charges to the ground.
Conductive fibers resistanc: 10³ - 10⁴ Ω
Dissipative handle resistance: 10⁵ - 10⁸ Ω
Harder brushes are used mainly for electronics in manufacturing and service of the circuit boards.
Soft brushes are used for cleaning optics, micro-circuits etc.

Part Number	Rows and Bristles	Description	Total length (mm)	Bristle Length (mm)	Bristle Width (mm)	Bristle Height (mm)	Weight (g)
ABB-501	1 row	ESD pen Brush	135	20	fi 3.4		8
ABB-502	1 row	ESD pen Brush	140	20	fi 3.4		8
ABB-503	1 row 3 bristles bundles	ESD Safe Conductive, hard brush.	155	18	3.6	30	17
ABB-505	1 row 5 bristles bundles	ESD Safe Conductive, hard brush.	165	33	4.5	32	20
ABB-507	1 row 7 bristles bundles	ESD Safe Conductive, semi-hard brush.	140	33	2.7	25	13
ABB-507R	Round 7 bristles bundles	ESD round Brush		circle	fi=9	17	10
ABB-510	1 packet, flat	ESD Brusch, Round, Hard, Good universal use.Cleanning PCB's etc. Perfect for light duty.	162	17	5	30	22

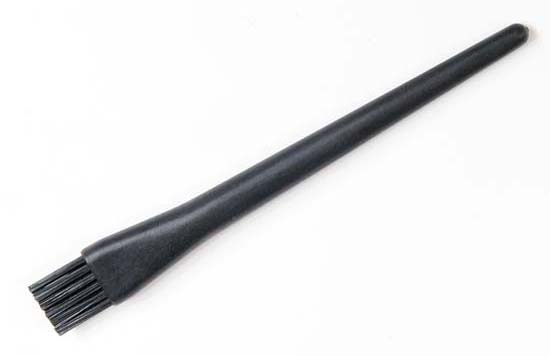

ABB-511	2 rows 11 bristles bundles	Semi-hard ESD Brush, Light duty	150	18	4.5	20	8
ABB-520	3 rows 20 bristles bundles	ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	175	35	10	16	19
ABB-522	2 rows 22 bristles bundles	ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	170	60	10	18	23
ABB-534	3 rows 34 bristles bundles	ESD Conductive brush. Surface resistance:10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body.	225	94	16	22	52
ABB-550	Continuous packet of bristles	ESD Safe Conductive, Soft brush. 2" wide.	220	50	15	50	100
ABB-575	Continuous packet of bristles	ESD Safe Conductive, Soft brush. 3" wide.	210	75	15	50	120
ABB-317	1 row 17 bristles bundles	ESD Safe, Conductive Soft brush. Medium size. Good for cleaning benches and other larger surfaces. Will not generate static during cleanning process.	255	125	5	33	80
ABB-333	1 row 33 bristles bundles	ESD Safe, Large, Conductive Soft brush. Good for cleaning bench es and other larger surfaced. Will not generate the charges during cleanning process.	390	220	5	48	143
ABB-350	5 rows 50 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	95	68	32	20	62
ABB-398	7 rows 98 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	120	95	46	20	107
ABB-3160	8 rows 160 bristles bundles	ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces.	180	155	57	20	203

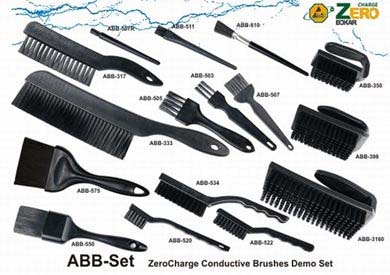

ABB-Demo Set	15 brushes	ESD Safe Conductive brushes. Good for cleaning flux residue and small particles on PCB's and other surfaces.
